RecastModel Class Reference

Derived model class which provides a thin wrapper around a sub-model in order to recast the form of its inputs and/or outputs. More...

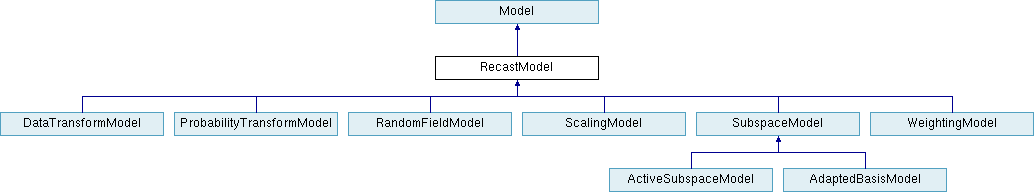

Inheritance diagram for RecastModel:

Public Member Functions
	RecastModel (std::shared_ptr< Model > sub_model, const Sizet2DArray &vars_map_indices, const SizetArray &vars_comps_total, const BitArray &all_relax_di, const BitArray &all_relax_dr, bool nonlinear_vars_mapping, const ShortShortPair &recast_vars_view, void(*variables_map)(const Variables &recast_vars, Variables &sub_model_vars), void(*set_map)(const Variables &recast_vars, const ActiveSet &recast_set, ActiveSet &sub_model_set), const Sizet2DArray &primary_resp_map_indices, const Sizet2DArray &secondary_resp_map_indices, size_t recast_secondary_offset, short recast_resp_order, const BoolDequeArray &nonlinear_resp_mapping, void(*primary_resp_map)(const Variables &sub_model_vars, const Variables &recast_vars, const Response &sub_model_response, Response &recast_response), void(*secondary_resp_map)(const Variables &sub_model_vars, const Variables &recast_vars, const Response &sub_model_response, Response &recast_response))
	standard (full) constructor; assumes provided sizes and map functions are final and constructs all member data More...
	RecastModel (std::shared_ptr< Model > sub_model, const SizetArray &vars_comps_totals, const BitArray &all_relax_di, const BitArray &all_relax_dr, const ShortShortPair &recast_vars_view, size_t num_recast_primary_fns, size_t num_recast_secondary_fns, size_t recast_secondary_offset, short recast_resp_order)
	alternate constructor; uses provided sizes to construct Variables, Response and Constraints so Model can be passed to an Iterator; requires subsequent init_maps() call. More...
	RecastModel (std::shared_ptr< Model >, const ShortShortPair &recast_vars_view)
	alternate constructor; only changes the view (NEED A SUBCLASS FOR THIS?) More...
	RecastModel (ProblemDescDB &problem_db, std::shared_ptr< Model > sub_model)
	Problem DB-based ctor, e.g., for use in subspace model; assumes mappings to be initialized later; only initializes based on sub-model.
	RecastModel (std::shared_ptr< Model > sub_model)
	lightest constructor used when transform sizes aren't known at construct time; doesn't initialize variables and responses, so this Model can't be used to construct an Iterator; requires subsequent init_sizes() and init_maps() calls.
void	init_sizes (const ShortShortPair &recast_vars_view, const SizetArray &vars_comps_totals, const BitArray &all_relax_di, const BitArray &all_relax_dr, size_t num_recast_primary_fns, size_t num_recast_secondary_fns, size_t recast_secondary_offset, short recast_resp_order, bool &consistent_vars)
	update recast sizes and size Variables and Response members after alternate construction
void	init_maps (const Sizet2DArray &vars_map_indices, bool nonlinear_vars_mapping, void(*variables_map)(const Variables &recast_vars, Variables &sub_model_vars), void(*set_map)(const Variables &recast_vars, const ActiveSet &recast_set, ActiveSet &sub_model_set), const Sizet2DArray &primary_resp_map_indices, const Sizet2DArray &secondary_resp_map_indices, const BoolDequeArray &nonlinear_resp_mapping, void(*primary_resp_map)(const Variables &sub_model_vars, const Variables &recast_vars, const Response &sub_model_response, Response &recast_response), void(*secondary_resp_map)(const Variables &sub_model_vars, const Variables &recast_vars, const Response &sub_model_response, Response &recast_response))
	initialize recast indices and map callbacks after alternate construction More...
void	inverse_mappings (void(*inv_vars_map)(const Variables &sub_model_vars, Variables &recast_vars), void(*inv_set_map)(const Variables &sub_model_vars, const ActiveSet &sub_model_set, ActiveSet &recast_set), void(*inv_pri_resp_map)(const Variables &recast_vars, const Variables &sub_model_vars, const Response &recast_resp, Response &sub_model_resp), void(*inv_sec_resp_map)(const Variables &recast_vars, const Variables &sub_model_vars, const Response &recast_resp, Response &sub_model_resp))
	provide optional inverse mappings
void	transform_variables (const Variables &recast_vars, Variables &sub_model_vars)
	perform transformation of Variables (recast --> sub-model)
void	transform_set (const Variables &recast_vars, const ActiveSet &recast_set, ActiveSet &sub_model_set)
	into sub_model_set for use with subModel.
void	transform_response (const Variables &recast_vars, const Variables &sub_model_vars, const Response &sub_model_resp, Response &recast_resp)
	perform transformation of Response (sub-model --> recast)
void	transform_response_map (const IntResponseMap &old_resp_map, IntResponseMap &new_resp_map)
	invoke transform_response() on each response within old_resp_map to create new_resp_map
void	inverse_transform_variables (const Variables &sub_model_vars, Variables &recast_vars)
	perform inverse transformation of Variables (sub-model --> recast)
void	inverse_transform_set (const Variables &sub_model_vars, const ActiveSet &sub_model_set, ActiveSet &recast_set)
	into sub_model_set for use with subModel.
void	inverse_transform_response (const Variables &sub_model_vars, const Variables &recast_vars, const Response &recast_resp, Response &sub_model_resp)
	perform inverse transformation of Response (recast --> sub-model)
void	submodel_supports_derivative_estimation (bool sed_flag)
	override the submodel's derivative estimation behavior
String	root_model_id () override
	Return the model ID of the "innermost" model. For all derived Models except RecastModels, return modelId. The RecastModel override returns the root_model_id() of the subModel.
ActiveSet	default_active_set () override
void	declare_sources () override
	Declare a model's sources to the evaluationsDB.
bool	nonlinear_variables_mapping () const
	return nonlinearVarsMapping
Pecos::ProbabilityTransformation &	probability_transformation () override
	return probability transformation employed by the Model (forwarded along to ProbabilityTransformModel recasting)
bool	initialize_mapping (ParLevLIter pl_iter) override
	Perform any global updates prior to individual evaluate() calls; returns true if the variables size has changed.
bool	finalize_mapping () override
	restore state in preparation for next initialization; returns true if the variables size has changed
void	nested_variable_mappings (const SizetArray &c_index1, const SizetArray &di_index1, const SizetArray &ds_index1, const SizetArray &dr_index1, const ShortArray &c_target2, const ShortArray &di_target2, const ShortArray &ds_target2, const ShortArray &dr_target2) override
	set primaryA{C,DI,DS,DR}VarMapIndices, secondaryA{C,DI,DS,DR}VarMapTargets (coming from a higher-level NestedModel context to inform derivative est.)
const SizetArray &	nested_acv1_indices () const override
	return primaryACVarMapIndices
const ShortArray &	nested_acv2_targets () const override
	return secondaryACVarMapTargets
short	query_distribution_parameter_derivatives () const override
	calculate and return derivative composition of final results w.r.t. distribution parameters (none, all, or mixed)
void	activate_distribution_parameter_derivatives () override
	activate derivative setting w.r.t. distribution parameters
void	deactivate_distribution_parameter_derivatives () override
	deactivate derivative setting w.r.t. distribution parameters
void	trans_grad_X_to_U (const RealVector &fn_grad_x, RealVector &fn_grad_u, const RealVector &x_vars) override
	transform x-space gradient vector to u-space
void	trans_grad_U_to_X (const RealVector &fn_grad_u, RealVector &fn_grad_x, const RealVector &x_vars) override
	transform u-space gradient vector to x-space
void	trans_grad_X_to_S (const RealVector &fn_grad_x, RealVector &fn_grad_s, const RealVector &x_vars) override
	transform x-space gradient vector to gradient with respect to inserted distribution parameters
void	trans_hess_X_to_U (const RealSymMatrix &fn_hess_x, RealSymMatrix &fn_hess_u, const RealVector &x_vars, const RealVector &fn_grad_x) override
	transform x-space Hessian matrix to u-space
size_t	qoi () const override
	return number of unique response functions (managing any aggregations)
void	derived_evaluate (const ActiveSet &set) override
	portion of evaluate() specific to RecastModel (forward to subModel.evaluate()) More...
void	derived_evaluate_nowait (const ActiveSet &set) override
	portion of evaluate_nowait() specific to RecastModel (forward to subModel.evaluate_nowait())
const IntResponseMap &	derived_synchronize () override
	portion of synchronize() specific to RecastModel (forward to subModel.synchronize())
const IntResponseMap &	derived_synchronize_nowait () override
	portion of synchronize_nowait() specific to RecastModel (forward to subModel.synchronize_nowait())
std::shared_ptr< Iterator >	subordinate_iterator () override
	return sub-iterator, if present, within subModel
std::shared_ptr< Model >	subordinate_model () override
	return subModel
void	active_model_key (const Pecos::ActiveKey &key) override
	set key in subModel
const Pecos::ActiveKey &	active_model_key () const override
	return key from subModel
void	clear_model_keys () override
	remove keys in subModel
std::shared_ptr< Model >	surrogate_model (size_t i=_NPOS) override
	return the i-th surrogate model within subModel
std::shared_ptr< const Model >	surrogate_model (size_t i=_NPOS) const override
	return the i-th surrogate model within subModel
std::shared_ptr< Model >	active_surrogate_model (size_t i=_NPOS) override
	return the i-th active surrogate model within subModel
std::shared_ptr< const Model >	active_surrogate_model (size_t i=_NPOS) const override
	return the i-th active surrogate model within subModel
std::shared_ptr< Model >	truth_model () override
	return the truth model within subModel
std::shared_ptr< const Model >	truth_model () const override
	return the truth model within subModel
std::shared_ptr< Model >	active_truth_model () override
	return the active truth model within subModel
std::shared_ptr< const Model >	active_truth_model () const override
	return the active truth model within subModel
void	derived_subordinate_models (ModelList &ml, bool recurse_flag) override
	add subModel to list and recurse into subModel
void	resize_from_subordinate_model (size_t depth=SZ_MAX) override
	pass request to subModel if recursing and then resize from its results
void	update_from_subordinate_model (size_t depth=SZ_MAX) override
	pass request to subModel if recursing and then update from its results
std::shared_ptr< Interface >	derived_interface () override
	return subModel interface
void	derived_interface (std::shared_ptr< Interface >) override
size_t	solution_levels () const override
	return size of subModel::solnControlCostMap
void	solution_level_cost_index (size_t cost_index) override
	activate entry in subModel::solnControlCostMap
size_t	solution_level_cost_index () const override
	return active entry in subModel::solnControlCostMap
RealVector	solution_level_costs () const override
	return cost estimates from subModel::solnControlCostMap
Real	solution_level_cost () const override
	return active cost estimate from subModel::solnControlCostMap
void	primary_response_fn_weights (const RealVector &wts, bool recurse_flag=true) override
	set the relative weightings for multiple objective functions or least squares terms and optionally recurses into subModel
void	surrogate_function_indices (const SizetSet &surr_fn_indices) override
	update the subModel's surrogate response function indices (DataFitSurrModel::surrogateFnIndices)
void	surrogate_response_mode (short mode) override
	update the subModel's surrogate response mode (SurrogateModel::responseMode)
void	discrepancy_emulation_mode (short mode) override
	update the subModel's discrepancy emulation mode
short	correction_type () const override
	retrieve subModel's correction type
void	correction_type (short corr_type) override
	update subModel's correction type
short	correction_order () const override
	retrieve subModel's correction order
const RealVector &	error_estimates () override
	retrieve error estimates corresponding to the subModel
void	build_approximation () override
	builds the subModel approximation
bool	build_approximation (const Variables &vars, const IntResponsePair &response_pr) override
	builds the subModel approximation
void	rebuild_approximation () override
	updates a subModel approximation
void	update_approximation (bool rebuild_flag) override
	replaces data in the subModel approximation
void	update_approximation (const Variables &vars, const IntResponsePair &response_pr, bool rebuild_flag) override
	replaces data in the subModel approximation
void	update_approximation (const VariablesArray &vars_array, const IntResponseMap &resp_map, bool rebuild_flag) override
	replaces data in the subModel approximation
void	append_approximation (bool rebuild_flag) override
	appends data to the subModel approximation
void	append_approximation (const Variables &vars, const IntResponsePair &response_pr, bool rebuild_flag) override
	appends data to the subModel approximation
void	append_approximation (const VariablesArray &vars_array, const IntResponseMap &resp_map, bool rebuild_flag) override
	appends data to the subModel approximation
void	pop_approximation (bool save_surr_data, bool rebuild_flag=false) override
	remove the previous data set addition to a surrogate (e.g., due to a previous append_approximation() call); flag manages storing of surrogate data for use in a subsequent push_approximation()
void	push_approximation () override
	push a previous approximation data state; reverse of pop_approximation
bool	push_available () override
	query for whether a trial increment is restorable within a surrogate
void	finalize_approximation () override
	finalize an approximation by applying all previous trial increments
void	combine_approximation () override
	combine the current approximation with previously stored data sets
void	combined_to_active (bool clear_combined=true) override
	promote the combined approximation into the active approximation
void	clear_inactive () override
	clear inactive approximations (finalization + combination completed)
std::vector< Approximation > &	approximations () override
	retrieve the set of Approximations from the subModel
const RealVectorArray &	approximation_coefficients (bool normalized=false) override
	retrieve the approximation coefficients from the subModel
void	approximation_coefficients (const RealVectorArray &approx_coeffs, bool normalized=false) override
	set the approximation coefficients within the subModel
const RealVector &	approximation_variances (const Variables &vars) override
	retrieve the approximation variances from the subModel
const Pecos::SurrogateData &	approximation_data (size_t fn_index) override
	retrieve the approximation data from the subModel
void	component_parallel_mode (short mode) override
	RecastModel only supports parallelism in subModel, so this virtual function redefinition is simply a sanity check.
size_t	mi_parallel_level_index () const override
	return subModel's MI parallel level index
short	local_eval_synchronization () override
	return subModel local synchronization setting
int	local_eval_concurrency () override
	return subModel local evaluation concurrency
bool	derived_scheduler_overload () const override
	flag which prevents overloading the dedicated scheduler processor with a multiprocessor evaluation (request forwarded to subModel)
IntIntPair	estimate_partition_bounds (int max_eval_concurrency) override
	estimate the minimum and maximum partition sizes that can be utilized by this Model
void	derived_init_communicators (ParLevLIter pl_iter, int max_eval_concurrency, bool recurse_flag=true) override
	set up RecastModel for parallel operations (request forwarded to subModel)
void	derived_init_serial () override
	set up RecastModel for serial operations (request forwarded to subModel).
void	derived_set_communicators (ParLevLIter pl_iter, int max_eval_concurrency, bool recurse_flag=true) override
	set active parallel configuration within subModel
void	derived_free_communicators (ParLevLIter pl_iter, int max_eval_concurrency, bool recurse_flag=true) override
	deallocate communicator partitions for the RecastModel (request forwarded to subModel)
void	serve_run (ParLevLIter pl_iter, int max_eval_concurrency) override
	Service subModel job requests received from the dedicated scheduler. Completes when a termination message is received from stop_servers().
void	stop_servers () override
	executed by the dedicated scheduler to terminate subModel server operations when RecastModel iteration is complete.
void	active_view (short view, bool recurse_flag=true) override
	update the Model's active view based on higher level context and optionally recurse into subModel
void	inactive_view (short view, bool recurse_flag=true) override
	update the Model's inactive view based on higher level context and optionally recurse into subModel
const String &	interface_id () const override
	return the subModel interface identifier
bool	evaluation_cache (bool recurse_flag=true) const override
	if recurse_flag, return the subModel evaluation cache usage
bool	restart_file (bool recurse_flag=true) const override
	if recurse_flag, return the subModel restart file usage
int	derived_evaluation_id () const override
	return the current evaluation id for the RecastModel
void	set_evaluation_reference () override
	set the evaluation counter reference points for the RecastModel (request forwarded to subModel)
void	fine_grained_evaluation_counters () override
	request fine-grained evaluation reporting within subModel
void	print_evaluation_summary (std::ostream &s, bool minimal_header=false, bool relative_count=true) const override
	print the evaluation summary for the RecastModel (request forwarded to subModel)
void	warm_start_flag (const bool flag) override
	set the warm start flag, including the orderedModels
void	eval_tag_prefix (const String &eval_id_str) override
	set the hierarchical eval ID tag prefix More...
bool	db_lookup (const Variables &search_vars, const ActiveSet &search_set, Response &found_resp) override
	RecastModel may need to map variables, asv before DB lookup, or responses after lookup.
virtual void	assign_instance ()
	assign static pointer instance to this for use in static transformation functions
virtual void	init_metadata ()
	default clear metadata in Recasts; derived classes can override to no-op
void	init_basic ()
void	init_variables (const ShortShortPair &recast_vars_view, const SizetArray &vars_comps_totals, const BitArray &all_relax_di, const BitArray &all_relax_dr, bool &consistent_vars)
	initialize currentVariables and related info from the passed size/type info
void	init_constraints (bool consistent_vars, size_t num_recast_nln_ineq, size_t num_recast_nln_eq)
	initialize userDefinedConstraints, sharing SVD with currentVariables
void	init_distribution (bool consistent_vars)
	initialize mvDist from SharedVariablesData
void	init_response (size_t num_recast_primary_fns, size_t num_recast_secondary_fns, short recast_resp_order)
	initialize currentResponse from the passed size info
void	reshape_response (size_t num_recast_primary_fns, size_t num_recast_secondary_fns)
	Reshape the RecastModel Response, assuming no change in variables or derivative information.
void	initialize_data_from_submodel ()
	code shared among constructors to initialize base class data from submodel
void	update_from_model (Model &model)
	update current variables/bounds/labels/constraints from subModel More...
virtual bool	update_variables_from_model (Model &model)
	update active variables/bounds/labels from subModel
void	update_all_variables (const Model &model)
	update all variable values from passed sub-model
void	update_all_discrete_variables (const Model &model)
	update discrete variable values from passed sub-model
void	update_variables_active_complement_from_model (const Model &model)
	update complement of active variables/bounds/labels from subModel
void	update_continuous_variables_active_complement_from_model (const Model &model)
	update complement of active continuous variables/bounds/labels from subModel
void	update_discrete_int_variables_active_complement_from_model (const Model &model)
	update complement of active discrete int variables/bounds/labels from subModel
void	update_discrete_string_variables_active_complement_from_model (const Model &model)
	update complement of active discrete string variables/bounds/labels from subModel
void	update_discrete_real_variables_active_complement_from_model (const Model &model)
	update complement of active discrete real variables/bounds/labels from subModel
void	update_linear_constraints (const Model &model)
	update linear constraints from passed sub-model
void	update_response_from_model (const Model &model)
	update labels and nonlinear constraint bounds/targets from subModel
void	update_primary_response (const Model &model)
	update only the primary response data from subModel
void	update_secondary_response (const Model &model)
	update only the secondary response data from subModel
void	recast_vector (const RealVector &submodel_vec, RealVector &vec) const
Public Member Functions inherited from Model
	Model ()
	default constructor More...
	Model (ProblemDescDB &problem_db)
	standard constructor More...
	Model (const Model &model)=delete
	copy constructor
Model &	operator= (const Model &model)=delete
	assignment operator
virtual void	stop_init_mapping (ParLevLIter pl_iter)
	called from IteratorScheduler::run_iterator() for iteratorComm rank 0 to terminate serve_init_mapping() on other iteratorComm processors
virtual int	serve_init_mapping (ParLevLIter pl_iter)
	called from IteratorScheduler::run_iterator() for iteratorComm rank != 0 to balance resize() calls on iteratorComm rank 0
virtual void	stop_finalize_mapping (ParLevLIter pl_iter)
	called from IteratorScheduler::run_iterator() for iteratorComm rank 0 to terminate serve_finalize_mapping() on other iteratorComm processors
virtual int	serve_finalize_mapping (ParLevLIter pl_iter)
	called from IteratorScheduler::run_iterator() for iteratorComm rank != 0 to balance resize() calls on iteratorComm rank 0
virtual void	cache_unmatched_response (int raw_id)
	migrate an unmatched response record from active response map (computed by synchronize() or synhronize_nowait()) to cached response map
virtual void	cache_unmatched_responses ()
	migrate remaining response records from responseMap to cachedResponseMap
virtual void	create_2d_plots ()
	create 2D graphics plots for automatic logging of vars/response data
virtual void	create_tabular_datastream ()
	create a tabular output stream for automatic logging of vars/response data
virtual void	derived_auto_graphics (const Variables &vars, const Response &resp)
	Update tabular/graphics data with latest variables/response data.
virtual void	trans_U_to_X (const RealVector &u_c_vars, RealVector &x_c_vars)
	transform u-space variable values to x-space
virtual void	trans_X_to_U (const RealVector &x_c_vars, RealVector &u_c_vars)
	transform x-space variable values to u-space
virtual unsigned short	active_surrogate_model_form (size_t i) const
	return the model form of the i-th active surrogate model
virtual unsigned short	active_truth_model_form () const
	return the model form of the active truth model
virtual bool	active_truth_key () const
	return true if there is an active truth model indicated by truthModelKey
virtual size_t	active_surrogate_keys () const
	return the number of active surrogate models indicated by surrModelKeys
virtual bool	force_rebuild ()
	determine whether a surrogate model rebuild should be forced based on changes in the inactive data
virtual short	surrogate_response_mode () const
	return response computation mode used in SurrogateModels for forming currentResponse
virtual DiscrepancyCorrection &	discrepancy_correction ()
	return the DiscrepancyCorrection object used by SurrogateModels
virtual unsigned short	correction_mode () const
	return correctionMode
virtual void	correction_mode (unsigned short corr_mode)
	set correctionMode
virtual void	rebuild_approximation (const IntResponsePair &response_pr)
	incremental rebuild of an existing SurrogateModel approximation
virtual void	rebuild_approximation (const IntResponseMap &resp_map)
	incremental rebuild of an existing SurrogateModel approximation
virtual void	update_approximation (const RealMatrix &samples, const IntResponseMap &resp_map, bool rebuild_flag)
	replace the data points within an existing surrogate
virtual void	append_approximation (const RealMatrix &samples, const IntResponseMap &resp_map, bool rebuild_flag)
	append multiple points to an existing surrogate's data
virtual void	append_approximation (const IntVariablesMap &vars_map, const IntResponseMap &resp_map, bool rebuild_flag)
	append multiple points to an existing surrogate's data
virtual void	replace_approximation (const IntResponsePair &response_pr, bool rebuild_flag)
	replace the response for a single point (based on eval id from response_pr) within an existing surrogate's data
virtual void	replace_approximation (const IntResponseMap &resp_map, bool rebuild_flag)
	replace the responses for a set of points (based on eval ids from resp_map) within an existing surrogate's data
virtual void	track_evaluation_ids (bool track)
	assigns a flag to track evaluation ids within surrogate data, enabling id-based lookups for data replacement
virtual bool	advancement_available ()
	query the approximation for available advancement in resolution controls (order, rank, etc.); an input to adaptive refinement strategies
virtual bool	formulation_updated () const
	query the approximation for updates in formulation, requiring a rebuild even if no updates to the build data
virtual void	formulation_updated (bool update)
	assign the status of approximation formulation updates
virtual void	run_dace ()
	execute the DACE iterator (prior to building/appending the approximation)
virtual SharedApproxData &	shared_approximation ()
	retrieve the shared approximation data within the ApproximationInterface of a DataFitSurrModel
virtual bool	multifidelity () const
	identify if 1D hierarchy can be defined across model forms
virtual bool	multilevel () const
	identify if 1D hierarchy can be defined across resolution levels
virtual bool	multilevel_multifidelity () const
	identify if 2D hierarchy can be defined across both model forms and resolution levels
virtual short	ensemble_precedence () const
	return precedence for ensemble definition: model forms, resolution levels, or both
virtual void	ensemble_precedence (short mlmf_prec, bool update_default=false)
	assign precedence for ensemble definition (model forms or resolution levels or both) as determined from algorithm context
virtual void	single_apply (const Variables &vars, Response &resp, const Pecos::ActiveKey &paired_key)
	apply a DiscrepancyCorrection to correct an approximation within an EnsembleSurrModel
virtual void	recursive_apply (const Variables &vars, Response &resp)
	apply a sequence of DiscrepancyCorrections to recursively correct an approximation within an EnsembleSurrModel
virtual short	solution_control_variable_type () const
	return type of solution control variable
virtual size_t	solution_control_variable_index () const
	return index of solution control variable within all variables
virtual size_t	solution_control_discrete_variable_index () const
	return index of solution control variable within all discrete variables
virtual int	solution_level_int_value () const
	return the active (integer) value of the solution control
virtual String	solution_level_string_value () const
	return the active (string) value of the solution control
virtual Real	solution_level_real_value () const
	return the active (real) value of the solution control
virtual size_t	cost_metadata_index () const
	return index of online cost estimates within metadata
virtual bool	resize_pending () const
	return true if a potential resize is still pending, such that sizing-based initialization should be deferred
ModelList &	subordinate_models (bool recurse_flag=true)
	return the sub-models in nested and surrogate models More...
void	evaluate ()
	Compute the Response at currentVariables (default ActiveSet).
void	evaluate (const ActiveSet &set)
	Compute the Response at currentVariables (specified ActiveSet).
void	evaluate_nowait ()
	Spawn an asynchronous job (or jobs) that computes the value of the Response at currentVariables (default ActiveSet).
void	evaluate_nowait (const ActiveSet &set)
	Spawn an asynchronous job (or jobs) that computes the value of the Response at currentVariables (specified ActiveSet).
const IntResponseMap &	synchronize ()
	Execute a blocking scheduling algorithm to collect the complete set of results from a group of asynchronous evaluations.
const IntResponseMap &	synchronize_nowait ()
	Execute a nonblocking scheduling algorithm to collect all available results from a group of asynchronous evaluations.
int	evaluation_id () const
	return Model's (top-level) evaluation counter, not to be confused with derived counter returned by derived_evaluation_id()
bool	mapping_initialized () const
void	init_communicators (ParLevLIter pl_iter, int max_eval_concurrency, bool recurse_flag=true)
	allocate communicator partitions for a model and store configuration in modelPCIterMap More...
void	init_serial ()
	for cases where init_communicators() will not be called, modify some default settings to behave properly in serial. More...
void	set_communicators (ParLevLIter pl_iter, int max_eval_concurrency, bool recurse_flag=true)
	set active parallel configuration for the model (set modelPCIter from modelPCIterMap)
void	free_communicators (ParLevLIter pl_iter, int max_eval_concurrency, bool recurse_flag=true)
	deallocate communicator partitions for a model
MPI_Comm	analysis_comm () const
	retrieve the MPI communicator on which this model is configured to conduct function evaluation analyses (provided for library clients)
void	stop_init_communicators (ParLevLIter pl_iter)
	called from IteratorScheduler::init_iterator() for iteratorComm rank 0 to terminate serve_init_communicators() on other iteratorComm processors
int	serve_init_communicators (ParLevLIter pl_iter)
	called from IteratorScheduler::init_iterator() for iteratorComm rank != 0 to balance init_communicators() calls on iteratorComm rank 0
void	estimate_message_lengths ()
	estimate messageLengths for a model More...
bool	manage_data_recastings ()
	initialize modelList and recastFlags for data import/export More...
bool	recastings () const
	return true if recastFlags is defined
void	user_space_to_iterator_space (Variables &vars)
	employ the model recursion to transform from bottom level user-space variables to top level iterator-space variables
void	user_space_to_iterator_space (const Variables &user_vars, const Response &user_resp, Variables &iter_vars, Response &iter_resp)
	employ the model recursion to transform from bottom level user-space data to top level iterator-space data
void	iterator_space_to_user_space (Variables &vars)
	employ the model recursion to transform from top level iterator-space variables to bottom level user-space variables
void	iterator_space_to_user_space (const Variables &iter_vars, const Response &iter_resp, Variables &user_vars, Response &user_resp)
	employ the model recursion to transform from top level iterator-space data to bottom level user-space data
Pecos::MultivariateDistribution &	multivariate_distribution ()
	return mvDist
const Pecos::MultivariateDistribution &	multivariate_distribution () const
	return mvDist
const Variables &	current_variables () const
	return the current variables (currentVariables) as const reference (preferred)
Variables &	current_variables ()
	return the current variables (currentVariables) in mutable form (special cases)
const Constraints &	user_defined_constraints () const
	return the user-defined constraints (userDefinedConstraints) as const reference (preferred)
Constraints &	user_defined_constraints ()
	return the user-defined constraints (userDefinedConstraints) in mutable form (special cases)
const Response &	current_response () const
	return the current response (currentResponse)
Response &	current_response ()
	return the current response (currentResponse)
ProblemDescDB &	problem_description_db () const
	return the problem description database (probDescDB)
ParallelLibrary &	parallel_library () const
	return the parallel library (parallelLib)
const String &	model_type () const
	return the model type (modelType)
const String &	surrogate_type () const
	return the surrogate type (surrogateType)
const String &	model_id () const
	return the model identifier (modelId)
size_t	num_primary_fns () const
	return number of primary functions (total less nonlinear constraints)
size_t	num_secondary_fns () const
	return number of secondary functions (number of nonlinear constraints)
const String &	gradient_type () const
	return the gradient evaluation type (gradientType)
const String &	method_source () const
	return the numerical gradient evaluation method source (methodSource)
const String &	interval_type () const
	return the numerical gradient evaluation interval type (intervalType)
bool	ignore_bounds () const
	option for ignoring bounds when numerically estimating derivatives
bool	central_hess () const
	option for using old 2nd-order scheme when computing finite-diff Hessian
const RealVector &	fd_gradient_step_size () const
	return the finite difference gradient step size (fdGradStepSize)
const String &	fd_gradient_step_type () const
	return the finite difference gradient step type (fdGradStepType)
const IntSet &	gradient_id_analytic () const
	return the mixed gradient analytic IDs (gradIdAnalytic)
const IntSet &	gradient_id_numerical () const
	return the mixed gradient numerical IDs (gradIdNumerical)
const String &	hessian_type () const
	return the Hessian evaluation type (hessianType)
const String &	quasi_hessian_type () const
	return the Hessian evaluation type (quasiHessType)
const RealVector &	fd_hessian_by_grad_step_size () const
	return gradient-based finite difference Hessian step size (fdHessByGradStepSize)
const RealVector &	fd_hessian_by_fn_step_size () const
	return function-based finite difference Hessian step size (fdHessByFnStepSize)
const String &	fd_hessian_step_type () const
	return the finite difference Hessian step type (fdHessStepType)
const IntSet &	hessian_id_analytic () const
	return the mixed Hessian analytic IDs (hessIdAnalytic)
const IntSet &	hessian_id_numerical () const
	return the mixed Hessian analytic IDs (hessIdNumerical)
const IntSet &	hessian_id_quasi () const
	return the mixed Hessian analytic IDs (hessIdQuasi)
void	primary_response_fn_sense (const BoolDeque &sense)
	set the optimization sense for multiple objective functions
const BoolDeque &	primary_response_fn_sense () const
	get the optimization sense for multiple objective functions
const RealVector &	primary_response_fn_weights () const
	get the relative weightings for multiple objective functions or least squares terms
const ScalingOptions &	scaling_options () const
	user-provided scaling options
short	primary_fn_type () const
	get the primary response function type (generic, objective, calibration)
void	primary_fn_type (short type)
	set the primary response function type, e.g., when recasting
bool	derivative_estimation ()
	indicates potential usage of estimate_derivatives() based on gradientType/hessianType
void	supports_derivative_estimation (bool sed_flag)
	set whether this model should perform or pass on derivative estimation
void	init_comms_bcast_flag (bool icb_flag)
	set initCommsBcastFlag
int	evaluation_capacity () const
	return the evaluation capacity for use in iterator logic
int	derivative_concurrency () const
	return the gradient concurrency for use in parallel configuration logic More...
bool	asynch_flag () const
	return the asynchronous evaluation flag (asynchEvalFlag)
void	asynch_flag (const bool flag)
	set the asynchronous evaluation flag (asynchEvalFlag)
short	output_level () const
	return the outputLevel
void	output_level (const short level)
	set the outputLevel
const IntArray &	message_lengths () const
	return the array of MPI packed message buffer lengths (messageLengths)
void	parallel_configuration_iterator (ParConfigLIter pc_iter)
	set modelPCIter
ParConfigLIter	parallel_configuration_iterator () const
	return modelPCIter
void	auto_graphics (const bool flag)
	set modelAutoGraphicsFlag to activate posting of graphics data within evaluate/synchronize functions (automatic graphics posting in the model as opposed to graphics posting at the strategy level).
bool	auto_graphics () const
	get modelAutoGraphicsFlag to activate posting of graphics data within evaluate/synchronize functions (automatic graphics posting in the model as opposed to graphics posting at the strategy level).

Static Public Member Functions
static short	response_order (const Model &sub_model)
	helper to compute the recast response order during member initialization
static String	recast_model_id (const String &root_id, const String &type)
	Generate a model id for recast models.
Static Public Member Functions inherited from Model
static void	active_variables (const RealVector &config_vars, Model &model)
	set the specified configuration to the Model's inactive vars, converting from real to integer or through index to string value as needed More...
static void	inactive_variables (const RealVector &config_vars, Model &model)
	set the specified configuration to the Model's inactive vars, converting from real to integer or through index to string value as needed More...
static void	inactive_variables (const RealVector &config_vars, Model &model, Variables &updated_vars)
static void	evaluate (const RealMatrix &samples_matrix, Model &model, RealMatrix &resp_matrix)
	Bulk synchronously evaluate the model for each column (of active variables) in the samples matrix and return as columns of the response matrix.
static void	evaluate (const VariablesArray &sample_vars, Model &model, RealMatrix &resp_matrix)
	Bulk synchronously evaluate the model for each entry (of active variables) in the samples vector and return as columns of the response matrix.

Public Attributes
std::shared_ptr< Model >	subModel
	the sub-model underlying the transformations
int	recastModelEvalCntr
	local evaluation id counter used for id mapping
IntActiveSetMap	recastSetMap
	map of recast active set passed to derived_evaluate_nowait(). Needed for currentResponse update in synchronization routines.
IntVariablesMap	recastVarsMap
	map of recast variables used by derived_evaluate_nowait(). Needed for primaryRespMapping() and secondaryRespMapping() in synchronization routines.
IntVariablesMap	subModelVarsMap
	map of subModel variables used by derived_evaluate_nowait(). Needed for primaryRespMapping() and secondaryRespMapping() in synchronization routines.
IntResponseMap	recastResponseMap
	map of recast responses used by RecastModel::derived_synchronize() and RecastModel::derived_synchronize_nowait()
IntIntMap	recastIdMap
	mapping from subModel evaluation ids to RecastModel evaluation ids
bool	nonlinearVarsMapping
	boolean set to true if the variables mapping involves a nonlinear transformation. Used in transform_set() to manage the requirement for gradients within the Hessian transformations. This does not require a BoolDeque for each individual variable, since response gradients and Hessians are managed per function, not per variable.

Static Public Attributes
static StringStringPairIntMap	recastModelIdCounters
	Counters for naming RecastModels.

Private Member Functions
void	resize_response_mapping ()
	resize {primary,secondary}MapIndices and nonlinearRespMapping to synchronize with subModel sizes

Private Attributes
Sizet2DArray	varsMapIndices
	For each subModel variable (leading index), identifies the indices of the recast variables used to define it (trailing index); used for forward iterator-driven mapping of RecastModel variables to subModel variables. Note: data is packed with only the variable indices employed, rather than a sparsely populated N_sm x N_r matrix.
Sizet2DArray	primaryRespMapIndices
	For each recast primary function, identifies the indices of the subModel functions used to define it (maps subModel response to RecastModel Response).
Sizet2DArray	secondaryRespMapIndices
	For each recast secondary function, identifies the indices of the subModel functions used to define it (maps subModel response to RecastModel response).
BoolDequeArray	nonlinearRespMapping
	array of BoolDeques, one for each recast response function. Each BoolDeque defines which subModel response functions contribute to the recast function using a nonlinear mapping. Used in transform_set() to augment the subModel function value/gradient requirements.
RealVector	mappedErrorEstimates
	mapping of subModel.error_estimates() through response mappings
void(*	variablesMapping )(const Variables &recast_vars, Variables &sub_model_vars)
	holds pointer for variables mapping function passed in ctor/initialize
void(*	setMapping )(const Variables &recast_vars, const ActiveSet &recast_set, ActiveSet &sub_model_set)
	holds pointer for set mapping function passed in ctor/initialize
void(*	primaryRespMapping )(const Variables &sub_model_vars, const Variables &recast_vars, const Response &sub_model_response, Response &recast_response)
	holds pointer for primary response mapping function passed in ctor/initialize
void(*	secondaryRespMapping )(const Variables &sub_model_vars, const Variables &recast_vars, const Response &sub_model_response, Response &recast_response)
	holds pointer for secondary response mapping function passed in ctor/initialize
void(*	invVarsMapping )(const Variables &sub_model_vars, Variables &recast_vars)
	holds pointer for optional inverse variables mapping function passed in inverse_mappings()
void(*	invSetMapping )(const Variables &sub_model_vars, const ActiveSet &sub_model_set, ActiveSet &recast_set)
	holds pointer for optional inverse set mapping function passed in inverse_mappings()
void(*	invPriRespMapping )(const Variables &recast_vars, const Variables &sub_model_vars, const Response &recast_resp, Response &sub_model_resp)
	holds pointer for optional inverse primary response mapping function passed in inverse_mappings()
void(*	invSecRespMapping )(const Variables &recast_vars, const Variables &sub_model_vars, const Response &recast_resp, Response &sub_model_resp)
	holds pointer for optional inverse secondary response mapping function passed in inverse_mappings()

Additional Inherited Members
Protected Member Functions inherited from Model
	Model (const ShortShortPair &vars_view, const SharedVariablesData &svd, bool share_svd, const SharedResponseData &srd, bool share_srd, const ActiveSet &set, short output_level, ProblemDescDB &problem_db=dummy_db, ParallelLibrary &parallel_lib=dummy_lib)
	constructor initializing the base class part of letter classes (BaseConstructor overloading avoids infinite recursion in the derived class constructors - Coplien, p. 139) More...
	Model (ProblemDescDB &problem_db, ParallelLibrary &parallel_lib)
	constructor initializing base class for recast model instances More...
void	update_model_active_variables (Model &model)
	update incoming (sub-)model with active values from currentVariables
IntResponseMap &	response_map ()
	return responseMap
void	initialize_distribution (Pecos::MultivariateDistribution &mv_dist, bool active_only=false)
	initialize distribution types from problemDescDB More...
void	initialize_active_types (Pecos::MultivariateDistribution &mv_dist)
	initialize distribution types from problemDescDB More...
void	initialize_distribution_parameters (Pecos::MultivariateDistribution &mv_dist, bool active_only=false)
	initialize distribution parameters from problemDescDB
void	set_ie_asynchronous_mode (int max_eval_concurrency)
	default logic for defining asynchEvalFlag and evaluationCapacity based on ie_pl settings
void	assign_max_strings (const Pecos::MultivariateDistribution &mv_dist, Variables &vars)
	assign all of the longest possible string values into vars
SSCIter	max_string (const StringSet &ss)
	return iterator for longest string value found in string set
SRMCIter	max_string (const StringRealMap &srm)
	return iterator for longest string value found in string map
SizetMultiArrayConstView	initialize_x0_bounds (const SizetArray &original_dvv, bool &active_derivs, bool &inactive_derivs, RealVector &x0, RealVector &fd_lb, RealVector &fd_ub) const
	Initialize data needed for computing finite differences (active/inactive, center point, and bounds)
Real	forward_grad_step (size_t num_deriv_vars, size_t xj_index, Real x0_j, Real lb_j, Real ub_j)
	Compute the forward step for a finite difference gradient; updates shortStep.
EvaluationsDBState	evaluations_db_state (const Interface &interface)
	Return the interface flag for the EvaluationsDB state.
EvaluationsDBState	evaluations_db_state (const Model &model)
	Return the model flag for the EvaluationsDB state.
void	asynch_eval_store (const Interface &interface, const int &id, const Response &response)
	Store the response portion of an interface evaluation. Called from rekey_response_map()
void	asynch_eval_store (const Model &model, const int &id, const Response &response)
	Exists to support storage of interface evaluations. No-op so that rekey_response_map<Model> can be generated.
template<typename MetaType >
void	rekey_response_map (MetaType &meta_object, IntIntMapArray &id_maps, IntResponseMapArray &resp_maps_rekey, bool deep_copy)
	rekey returned jobs matched in array of id_maps into array of resp_maps_rekey; unmatched jobs can be cached within the meta_object
template<typename MetaType >
void	rekey_response_map (MetaType &meta_object, IntIntMap &id_map, IntResponseMap &resp_map_rekey, bool deep_copy)
	rekey returned jobs matched in id_map into resp_map_rekey; unmatched jobs can be cached within the meta_object
template<typename MetaType >
void	rekey_synch (MetaType &meta_object, bool block, IntIntMapArray &id_maps, IntResponseMapArray &resp_maps_rekey, bool deep_copy=false)
	synchronize via meta_object and rekey returned jobs matched in array of id_maps into array of resp_maps_rekey; unmatched jobs are cached within the meta_object
template<typename MetaType >
void	rekey_synch (MetaType &meta_object, bool block, IntIntMap &id_map, IntResponseMap &resp_map_rekey, bool deep_copy=false)
	synchronize via meta_object and rekey returned jobs matched in id_map into resp_map_rekey; unmatched jobs are cached within the meta_object
Static Protected Member Functions inherited from Model
static String	user_auto_id ()
	return the next available model ID for no-ID user methods More...
static String	no_spec_id ()
	return the next available model ID for on-the-fly methods More...
Protected Attributes inherited from Model
Variables	currentVariables
	the set of current variables used by the model for performing function evaluations
size_t	numDerivVars
	the number of active continuous variables used in computing most response derivatives (i.e., in places such as quasi-Hessians and response corrections where only the active continuous variables are supported)
Response	currentResponse
	the set of current responses that holds the results of model function evaluations
size_t	numFns
	the number of functions in currentResponse
Constraints	userDefinedConstraints
	Explicit constraints on variables are maintained in the Constraints class hierarchy. Currently, this includes linear constraints and bounds, but could be extended in the future to include other explicit constraints which (1) have their form specified by the user, and (2) are not catalogued in Response since their form and coefficients are published to an iterator at startup.
String	modelId
	model identifier string from the input file
String	modelType
	type of model: simulation, nested, or surrogate
String	surrogateType
	type of surrogate model: local_*, multipoint_*, global_*, or hierarchical
String	gradientType
	type of gradient data: analytic, numerical, mixed, or none
String	methodSource
	source of numerical gradient routine: dakota or vendor
String	intervalType
	type of numerical gradient interval: central or forward
String	hessianType
	type of Hessian data: analytic, numerical, quasi, mixed, or none
RealVector	fdGradStepSize
	relative finite difference step size for numerical gradients More...
String	fdGradStepType
	type of finite difference step to use for numerical gradient: relative - step length is relative to x absolute - step length is what is specified bounds - step length is relative to range of x
RealVector	fdHessByGradStepSize
	relative finite difference step size for numerical Hessians estimated using first-order differences of gradients More...
RealVector	fdHessByFnStepSize
	relative finite difference step size for numerical Hessians estimated using second-order differences of function values More...
String	fdHessStepType
	type of finite difference step to use for numerical Hessian: relative - step length is relative to x absolute - step length is what is specified bounds - step length is relative to range of x
bool	ignoreBounds
	option to ignore bounds when computing finite diffs
bool	centralHess
	option to use old 2nd-order finite diffs for Hessians
bool	warmStartFlag
	if in warm-start mode, don't reset accumulated data (e.g., quasiHessians)
bool	supportsEstimDerivs
	whether model should perform or forward derivative estimation
String	quasiHessType
	quasi-Hessian type: bfgs, damped_bfgs, sr1
IntSet	gradIdAnalytic
	analytic id's for mixed gradients
IntSet	gradIdNumerical
	numerical id's for mixed gradients
IntSet	hessIdAnalytic
	analytic id's for mixed Hessians
IntSet	hessIdNumerical
	numerical id's for mixed Hessians
IntSet	hessIdQuasi
	quasi id's for mixed Hessians
EvaluationsDBState	modelEvaluationsDBState
	Whether to write model evals to the evaluations DB.
EvaluationsDBState	interfEvaluationsDBState
	Whether to write interface evals to the evaluations DB.
IntArray	messageLengths
	length of packed MPI buffers containing vars, vars/set, response, and PRPair
bool	mappingInitialized
	track use of initialize_mapping() and finalize_mapping()
ProblemDescDB &	probDescDB
	class member reference to the problem description database More...
ParallelLibrary &	parallelLib
	class member reference to the parallel library
ParConfigLIter	modelPCIter
	the ParallelConfiguration node used by this Model instance
short	componentParallelMode
	the component parallelism mode: NO_PARALLEL_MODE, SURROGATE_MODEL_MODE,
bool	asynchEvalFlag
	flags asynch evaluations (local or distributed)
int	evaluationCapacity
	capacity for concurrent evaluations supported by the Model
short	outputLevel
	output verbosity level: {SILENT,QUIET,NORMAL,VERBOSE,DEBUG}_OUTPUT
Pecos::MultivariateDistribution	mvDist
	the multivariate random variable distribution (in probability space corresponding to currentVariables)
BoolDeque	primaryRespFnSense
	array of flags (one per primary function) for switching the sense to maximize the primary function (default is minimize)
RealVector	primaryRespFnWts
	primary response function weightings (either weights for multiobjective optimization or weighted least squares)
bool	hierarchicalTagging
	whether to perform hierarchical evalID tagging of params/results
ScalingOptions	scalingOpts
	user-provided scaling data from the problem DB, possibly modified by Recasting
String	evalTagPrefix
	cached evalTag Prefix from parents to use at evaluate time
EvaluationStore &	evaluationsDB
	reference to the global evaluation database

Detailed Description

Derived model class which provides a thin wrapper around a sub-model in order to recast the form of its inputs and/or outputs.

The RecastModel class uses function pointers to allow recasting of the subModel input/output into new problem forms. For example, this is used to recast SBO approximate subproblems, multiobjective and least-squares reductions, and variable/response.

For now, making the assumption that variables mappings are ordered by submodel active continous, discrete int, discrete string, discrete real variables, even though all current use cases are continuous only.

When not using the standard (full) constructor, client code must make sure to complete initialization before using the RecastModel's mapping functions. Initialization steps:

1. sub model (all ctors do this)
2. init_sizes: once known, size Variables, Response, Constraints (full and intermediate ctor do this)
3. init_maps: set indices and callback pointers (only full ctor does this)

Constructor & Destructor Documentation

RecastModel() [1/3]

RecastModel	(	std::shared_ptr< Model >	sub_model,
		const Sizet2DArray &	vars_map_indices,
		const SizetArray &	vars_comps_totals,
		const BitArray &	all_relax_di,
		const BitArray &	all_relax_dr,
		bool	nonlinear_vars_mapping,
		const ShortShortPair &	recast_vars_view,
		void(*)(const Variables &recast_vars, Variables &sub_model_vars)	variables_map,
		void(*)(const Variables &recast_vars, const ActiveSet &recast_set, ActiveSet &sub_model_set)	set_map,
		const Sizet2DArray &	primary_resp_map_indices,
		const Sizet2DArray &	secondary_resp_map_indices,
		size_t	recast_secondary_offset,
		short	recast_resp_order,
		const BoolDequeArray &	nonlinear_resp_mapping,
		void(*)(const Variables &sub_model_vars, const Variables &recast_vars, const Response &sub_model_response, Response &recast_response)	primary_resp_map,
		void(*)(const Variables &sub_model_vars, const Variables &recast_vars, const Response &sub_model_response, Response &recast_response)	secondary_resp_map
	)

standard (full) constructor; assumes provided sizes and map functions are final and constructs all member data

Default recast model constructor. Requires full definition of the transformation; if any mappings are NULL, they are assumed to remain so in later initialization or updates. Parameter vars_comps_totals indicates the number of each type of variable {4 types} x {3 domains} in the recast variable space. Note: recast_secondary_offset is the start index for nonlinear equality constraints, typically defined as the number of nonlinear inequality constraints.

References Dakota::abort_handler(), Response::active_set_derivative_vector(), Variables::continuous_variable_ids(), SharedVariablesData::copy(), Variables::copy(), Model::currentResponse, Model::currentVariables, Variables::cv(), RecastModel::init_constraints(), RecastModel::init_distribution(), RecastModel::init_metadata(), RecastModel::init_response(), RecastModel::init_variables(), RecastModel::initialize_data_from_submodel(), RecastModel::nonlinearRespMapping, Response::num_functions(), Model::numDerivVars, Model::numFns, RecastModel::primaryRespMapIndices, RecastModel::primaryRespMapping, RecastModel::secondaryRespMapIndices, RecastModel::secondaryRespMapping, Variables::shared_data(), RecastModel::subModel, RecastModel::variablesMapping, and Variables::view().

RecastModel() [2/3]

RecastModel	(	std::shared_ptr< Model >	sub_model,
		const SizetArray &	vars_comps_totals,
		const BitArray &	all_relax_di,
		const BitArray &	all_relax_dr,
		const ShortShortPair &	recast_vars_view,
		size_t	num_recast_primary_fns,
		size_t	num_recast_secondary_fns,
		size_t	recast_secondary_offset,
		short	recast_resp_order
	)

alternate constructor; uses provided sizes to construct Variables, Response and Constraints so Model can be passed to an Iterator; requires subsequent init_maps() call.

This alternate constructor defers initialization of the function pointers until a separate call to init_maps(), and accepts the minimum information needed to construct currentVariables, currentResponse, and userDefinedConstraints. The resulting model is sufficiently complete for passing to an Iterator. Parameter vars_comps_totals indicates the number of each type of variable {4 types} x {3 domains} in the recast variable space. Note: recast_secondary_offset is the start index for equality constraints, typically num nonlinear ineq constraints.

References RecastModel::init_distribution(), RecastModel::init_sizes(), and RecastModel::initialize_data_from_submodel().

RecastModel() [3/3]

RecastModel	(	std::shared_ptr< Model >	sub_model,
		const ShortShortPair &	recast_vars_view
	)

alternate constructor; only changes the view (NEED A SUBCLASS FOR THIS?)

This alternate constructor only alters the active/inactive view

References Response::active_set_derivative_vector(), Variables::continuous_variable_ids(), SharedVariablesData::copy(), Variables::copy(), Model::currentResponse, Model::currentVariables, Variables::cv(), RecastModel::init_constraints(), RecastModel::init_distribution(), RecastModel::init_metadata(), RecastModel::initialize_data_from_submodel(), Response::num_functions(), Model::numDerivVars, Model::numFns, Variables::shared_data(), and RecastModel::subModel.

Member Function Documentation

init_maps()

void init_maps	(	const Sizet2DArray &	vars_map_indices,
		bool	nonlinear_vars_mapping,
		void(*)(const Variables &recast_vars, Variables &sub_model_vars)	variables_map,
		void(*)(const Variables &recast_vars, const ActiveSet &recast_set, ActiveSet &sub_model_set)	set_map,
		const Sizet2DArray &	primary_resp_map_indices,
		const Sizet2DArray &	secondary_resp_map_indices,
		const BoolDequeArray &	nonlinear_resp_mapping,
		void(*)(const Variables &sub_model_vars, const Variables &recast_vars, const Response &sub_model_response, Response &recast_response)	primary_resp_map,
		void(*)(const Variables &sub_model_vars, const Variables &recast_vars, const Response &sub_model_response, Response &recast_response)	secondary_resp_map
	)

initialize recast indices and map callbacks after alternate construction

This function is used for late initialization of the recasting functions. It is used in concert with the alternate constructor.

References Dakota::abort_handler(), RecastModel::nonlinearRespMapping, RecastModel::nonlinearVarsMapping, RecastModel::primaryRespMapIndices, RecastModel::primaryRespMapping, RecastModel::secondaryRespMapIndices, RecastModel::secondaryRespMapping, RecastModel::setMapping, RecastModel::variablesMapping, and RecastModel::varsMapIndices.

Referenced by DataTransformModel::DataTransformModel(), SubspaceModel::initialize_base_recast(), RandomFieldModel::initialize_recast(), ProbabilityTransformModel::ProbabilityTransformModel(), ScalingModel::ScalingModel(), and WeightingModel::WeightingModel().

derived_evaluate()

void derived_evaluate ( const ActiveSet &  set )

overridevirtual

portion of evaluate() specific to RecastModel (forward to subModel.evaluate())

The RecastModel is evaluated by an Iterator for a recast problem formulation. Therefore, the currentVariables, incoming active set, and output currentResponse all correspond to the recast inputs/outputs.

Reimplemented from Model.

Reimplemented in SubspaceModel.

References Response::active_set(), Model::currentResponse, Model::currentVariables, RecastModel::primaryRespMapping, RecastModel::recastModelEvalCntr, RecastModel::secondaryRespMapping, RecastModel::subModel, RecastModel::transform_response(), RecastModel::transform_set(), RecastModel::transform_variables(), and Response::update().

Referenced by ActiveSubspaceModel::derived_evaluate(), DataTransformModel::derived_evaluate(), RandomFieldModel::derived_evaluate(), and SubspaceModel::derived_evaluate().

eval_tag_prefix()

void eval_tag_prefix ( const String &  eval_id_str )

inlineoverridevirtual

set the hierarchical eval ID tag prefix

RecastModel just forwards any tags to its subModel

Reimplemented from Model.

References RecastModel::subModel.

update_from_model()

void update_from_model

(

Model &

model

)

update current variables/bounds/labels/constraints from subModel

Update inactive values and labels in currentVariables and inactive bound constraints in userDefinedConstraints from variables and constraints data within subModel.

References RecastModel::update_response_from_model(), RecastModel::update_variables_active_complement_from_model(), and RecastModel::update_variables_from_model().

Referenced by RecastModel::update_from_subordinate_model().

---

The documentation for this class was generated from the following files:

• RecastModel.hpp
• RecastModel.cpp
