Interface Class Reference

Base class for the interface class hierarchy. More...

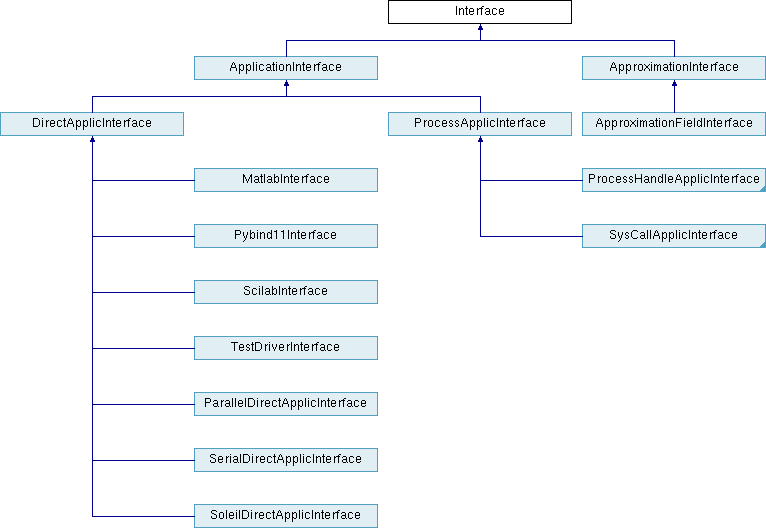

Inheritance diagram for Interface:

Public Member Functions
	Interface (const Interface &interface_in)
	copy constructor More...
virtual	~Interface ()
	destructor
Interface	operator= (const Interface &interface_in)
	assignment operator
virtual void	map (const Variables &vars, const ActiveSet &set, Response &response, bool asynch_flag=false)
	the function evaluator: provides a "mapping" from the variables to the responses.
virtual const IntResponseMap &	synchronize ()
	recovers data from a series of asynchronous evaluations (blocking)
virtual const IntResponseMap &	synchronize_nowait ()
	recovers data from a series of asynchronous evaluations (nonblocking)
virtual void	serve_evaluations ()
	evaluation server function for multiprocessor executions
virtual void	stop_evaluation_servers ()
	send messages from iterator rank 0 to terminate evaluation servers
virtual void	init_communicators (const IntArray &message_lengths, int max_eval_concurrency)
	allocate communicator partitions for concurrent evaluations within an iterator and concurrent multiprocessor analyses within an evaluation.
virtual void	set_communicators (const IntArray &message_lengths, int max_eval_concurrency)
	set the local parallel partition data for an interface (the partitions are already allocated in ParallelLibrary).
virtual void	init_serial ()
	reset certain defaults for serial interface objects.
virtual int	asynch_local_evaluation_concurrency () const
	return the user-specified concurrency for asynch local evaluations
virtual void	serialize_threshold (size_t thresh)
	set the threshold concurrency for serializing local evaluations
virtual short	interface_synchronization () const
	return the user-specified interface synchronization
virtual int	minimum_points (bool constraint_flag) const
	returns the minimum number of points required to build a particular ApproximationInterface (used by DataFitSurrModels).
virtual int	recommended_points (bool constraint_flag) const
	returns the recommended number of points required to build a particular ApproximationInterface (used by DataFitSurrModels).
virtual void	active_model_key (const Pecos::ActiveKey &key)
	activate an approximation state based on its key
virtual void	clear_model_keys ()
	reset initial state by removing all model keys for an approximation
virtual void	approximation_function_indices (const SizetSet &approx_fn_indices)
	set the (currently active) approximation function index set
virtual void	update_approximation (const Variables &vars, const IntResponsePair &response_pr)
	updates the anchor point for an approximation
virtual void	update_approximation (const RealMatrix &samples, const IntResponseMap &resp_map)
	updates the current data points for an approximation
virtual void	update_approximation (const VariablesArray &vars_array, const IntResponseMap &resp_map)
	updates the current data points for an approximation
virtual void	append_approximation (const Variables &vars, const IntResponsePair &response_pr)
	appends a single point to an existing approximation
virtual void	append_approximation (const RealMatrix &samples, const IntResponseMap &resp_map)
	appends multiple points to an existing approximation
virtual void	append_approximation (const VariablesArray &vars_array, const IntResponseMap &resp_map)
	appends multiple points to an existing approximation
virtual void	append_approximation (const IntVariablesMap &vars_map, const IntResponseMap &resp_map)
	appends multiple points to an existing approximation
virtual void	replace_approximation (const IntResponsePair &response_pr)
	replace the response for a single point within an existing approximation
virtual void	replace_approximation (const IntResponseMap &resp_map)
	replace responses for multiple points within an existing approximation
virtual void	track_evaluation_ids (bool track)
	assigns trackEvalIds to activate tracking of evaluation ids within surrogate data, enabling id-based lookups for data replacement
virtual void	build_approximation (const RealVector &c_l_bnds, const RealVector &c_u_bnds, const IntVector &di_l_bnds, const IntVector &di_u_bnds, const RealVector &dr_l_bnds, const RealVector &dr_u_bnds)
	builds the approximation
virtual void	export_approximation ()
	export the approximation to disk
virtual void	rebuild_approximation (const BitArray &rebuild_fns)
	rebuilds the approximation after a data update
virtual void	pop_approximation (bool save_data)
	removes data from last append from the approximation
virtual void	push_approximation ()
	retrieves approximation data from a previous state (negates pop)
virtual bool	push_available ()
	queries the approximation for the ability to retrieve a previous increment
virtual void	finalize_approximation ()
	finalizes the approximation by applying all trial increments
virtual void	combine_approximation ()
	combine the current approximation with previously stored data sets
virtual void	combined_to_active (bool clear_combined=true)
	promote the combined approximation to the currently active one
virtual void	clear_inactive ()
	clear inactive approximation data
virtual bool	advancement_available ()
	query for available advancements in approximation resolution controls
virtual bool	formulation_updated () const
	query for change in approximation formulation
virtual void	formulation_updated (bool update)
	assign an updated status for approximation formulation to force rebuild
virtual Real2DArray	cv_diagnostics (const StringArray &metric_types, unsigned num_folds)
	approximation cross-validation quality metrics per response function
virtual RealArray	challenge_diagnostics (const String &metric_type, const RealMatrix &challenge_pts)
	approximation challenge data metrics per response function
virtual void	clear_current_active_data ()
	clears current data from an approximation interface
virtual void	clear_active_data ()
	clears all data from an approximation interface
virtual SharedApproxData &	shared_approximation ()
	retrieve the SharedApproxData within an ApproximationInterface
virtual std::vector< Approximation > &	approximations ()
	retrieve the Approximations within an ApproximationInterface
virtual const Pecos::SurrogateData &	approximation_data (size_t fn_index)
	retrieve the approximation data from a particular Approximation within an ApproximationInterface
virtual const RealVectorArray &	approximation_coefficients (bool normalized=false)
	retrieve the approximation coefficients from each Approximation within an ApproximationInterface
virtual void	approximation_coefficients (const RealVectorArray &approx_coeffs, bool normalized=false)
	set the approximation coefficients within each Approximation within an ApproximationInterface
virtual const RealVector &	approximation_variances (const Variables &vars)
	retrieve the approximation variances from each Approximation within an ApproximationInterface
virtual const StringArray &	analysis_drivers () const
	retrieve the analysis drivers specification for application interfaces
virtual const String2DArray &	analysis_components () const
	retrieve the analysis components, if available
virtual void	discrepancy_emulation_mode (short mode)
	set discrepancy emulation mode used for approximating response differences
virtual bool	evaluation_cache () const
	return flag indicating usage of the global evaluation cache
virtual bool	restart_file () const
	return flag indicating usage of the restart file
virtual void	file_cleanup () const
	clean up any interface parameter/response files when aborting
IntResponseMap &	response_map ()
	return rawResponseMap
void	cache_unmatched_response (int raw_id)
	migrate an unmatched response record from rawResponseMap to cachedResponseMap
void	cache_unmatched_responses ()
	migrate all remaining response records from rawResponseMap to cachedResponseMap
unsigned short	interface_type () const
	returns the interface type
const String &	interface_id () const
	returns the interface identifier
int	evaluation_id () const
	returns the value of the (total) evaluation id counter for the interface
void	fine_grained_evaluation_counters (size_t num_fns)
	set fineGrainEvalCounters to true and initialize counters if needed
void	init_evaluation_counters (size_t num_fns)
	initialize fine grained evaluation counters, sizing if needed
void	set_evaluation_reference ()
	set evaluation count reference points for the interface
void	print_evaluation_summary (std::ostream &s, bool minimal_header, bool relative_count) const
	print an evaluation summary for the interface
bool	multi_proc_eval () const
	returns a flag signaling the use of multiprocessor evaluation partitions
bool	iterator_eval_dedicated_scheduler () const
	returns a flag signaling the use of a dedicated scheduler processor at the iterator-evaluation scheduling level
void	eval_tag_prefix (const String &eval_id_str, bool append_iface_id=true)
	set the evaluation tag prefix (does not recurse) More...

Static Public Member Functions
static std::shared_ptr< Interface >	get_interface (ProblemDescDB &problem_db, ParallelLibrary &parallel_lib)
	retrieve an existing Interface, if it exists, or instantiate a new one More...
static std::list< std::shared_ptr< Interface > > &	interface_cache (ProblemDescDB &problem_db)
	return the interface cache for the study More...
static void	remove_cached_interface (const ProblemDescDB &problem_db)
	remove a cached Interface for the study

Protected Member Functions
	Interface (const ProblemDescDB &problem_db)
	constructor initializes the base class configuration More...
	Interface (size_t num_fns, short output_level)
	constructor initializes the base class configuration for on the fly instantiations without a DB)
void	init_algebraic_mappings (const Variables &vars, const Response &response)
	Define algebraicACVIndices, algebraicACVIds, and algebraicFnIndices.
void	asv_mapping (const ActiveSet &total_set, ActiveSet &algebraic_set, ActiveSet &core_set)
	define the evaluation requirements for algebraic_mappings() (algebraic_set) and the core Application/Approximation mapping (core_set) from the total Interface evaluation requirements (total_set)
void	asv_mapping (const ActiveSet &algebraic_set, ActiveSet &total_set)
	map an algebraic ASV back to original total ordering for asynch recovery
void	algebraic_mappings (const Variables &vars, const ActiveSet &algebraic_set, Response &algebraic_response)
	evaluate the algebraic_response using the AMPL solver library and the data extracted from the algebraic_mappings file
void	response_mapping (const Response &algebraic_response, const Response &core_response, Response &total_response)
	combine the response from algebraic_mappings() with the response from derived_map() to create the total response More...
virtual String	final_eval_id_tag (int fn_eval_id)
	form and return the final evaluation ID tag, appending iface ID if needed

Protected Attributes
unsigned short	interfaceType
	the interface type: enum for system, fork, direct, grid, or approximation
String	interfaceId
	the interface specification identifier string from the DAKOTA input file
bool	algebraicMappings
	flag for the presence of algebraic_mappings that define the subset of an Interface's parameter to response mapping that is explicit and algebraic.
bool	coreMappings
	flag for the presence of non-algebraic mappings that define the core of an Interface's parameter to response mapping (using analysis_drivers for ApplicationInterface or functionSurfaces for ApproximationInterface).
short	outputLevel
	output verbosity level: {SILENT,QUIET,NORMAL,VERBOSE,DEBUG}_OUTPUT
int	currEvalId
	identifier for the current evaluation, which may differ from the evaluation counters in the case of evaluation scheduling; used on iterator scheduler as well as server processors. Currently, this is set prior to all invocations of derived_map() for all processors.
bool	fineGrainEvalCounters
	controls use of fn val/grad/hess counters for detailed evaluation report
int	evalIdCntr
	total interface evaluation counter
int	newEvalIdCntr
	new (non-duplicate) interface evaluation counter
int	evalIdRefPt
	iteration reference point for evalIdCntr
int	newEvalIdRefPt
	iteration reference point for newEvalIdCntr
IntArray	fnValCounter
	number of value evaluations by resp fn
IntArray	fnGradCounter
	number of gradient evaluations by resp fn
IntArray	fnHessCounter
	number of Hessian evaluations by resp fn
IntArray	newFnValCounter
	number of new value evaluations by resp fn
IntArray	newFnGradCounter
	number of new gradient evaluations by resp fn
IntArray	newFnHessCounter
	number of new Hessian evaluations by resp fn
IntArray	fnValRefPt
	iteration reference point for fnValCounter
IntArray	fnGradRefPt
	iteration reference point for fnGradCounter
IntArray	fnHessRefPt
	iteration reference point for fnHessCounter
IntArray	newFnValRefPt
	iteration reference point for newFnValCounter
IntArray	newFnGradRefPt
	iteration reference point for newFnGradCounter
IntArray	newFnHessRefPt
	iteration reference point for newFnHessCounter
IntResponseMap	rawResponseMap
	Set of responses returned by either a blocking or nonblocking schedule. More...
IntResponseMap	cachedResponseMap
	Set of available asynchronous responses completed within a blocking or nonblocking scheduler that cannot be processed in a higher level context and need to be stored for later.
StringArray	fnLabels
	response function descriptors (used in print_evaluation_summary() and derived direct interface classes); initialized in map() functions due to potential updates after construction
bool	multiProcEvalFlag
	flag for multiprocessor evaluation partitions (evalComm)
bool	ieDedSchedFlag
	flag for dedicated scheduler partitioning at the iterator level
String	evalTagPrefix
	set of period-delimited evaluation ID tags to use in evaluation tagging
bool	appendIfaceId
	whether to append the interface ID to the prefix during map (default true)
String2DArray	analysisComponents
	Analysis components for interface types that support them.

Private Member Functions
int	algebraic_function_type (String)
	Used by algebraic mappings to determine the correct AMPL function evaluation call to make.

Static Private Member Functions
static void	clean_up_all_interfaces ()
	Clean up files for all interfaces (used by abort handler)
static String	user_auto_id ()
	return the next available interface ID for no-ID user methods More...
static String	no_spec_id ()
	return the next available interface ID for on-the-fly methods More...

Private Attributes
StringArray	algebraicVarTags
	set of variable tags from AMPL stub.col
SizetArray	algebraicACVIndices
	set of indices mapping AMPL algebraic variables to DAKOTA all continuous variables
SizetArray	algebraicACVIds
	set of ids mapping AMPL algebraic variables to DAKOTA all continuous variables
StringArray	algebraicFnTags
	set of function tags from AMPL stub.row
IntArray	algebraicFnTypes
	function type: > 0 = objective, < 0 = constraint |value|-1 is the objective (constraint) index when making AMPL objval (conival) calls
SizetArray	algebraicFnIndices
	set of indices mapping AMPL algebraic objective functions to DAKOTA response functions
RealArray	algebraicConstraintWeights
	set of weights for computing Hessian matrices for algebraic constraints;
int	numAlgebraicResponses
	number of algebraic responses (objectives+constraints)
ASL *	asl
	pointer to an AMPL solver library (ASL) object

Static Private Attributes
static std::map< const ProblemDescDB *, std::list< std::shared_ptr< Interface > > >	interfaceCache {}
	Cache of Interfaces created for each study.
static size_t	noSpecIdNum = 0
	the last used interface ID number for on-the-fly instantiations (increment before each use)

Friends
class	CleanUpAllInterfacesAttorney

Detailed Description

Base class for the interface class hierarchy.

The Interface class hierarchy provides the part of a Model that is responsible for mapping a set of Variables into a set of Responses. The mapping is performed using either a simulation-based application interface or a surrogate-based approximation interface.

Constructor & Destructor Documentation

Interface() [1/2]

Interface

(

const Interface &

interface_in

)

copy constructor

Copy constructor

Interface() [2/2]

Interface ( const ProblemDescDB &  problem_db )

protected

constructor initializes the base class configuration

Base class constructor to initialize class data for all inherited interfaces. InterfaceUtils::get_interface(...) instantiates derived classs

References Dakota::abort_handler(), Interface::algebraic_function_type(), Interface::algebraicConstraintWeights, Interface::algebraicFnTags, Interface::algebraicFnTypes, Interface::algebraicMappings, Interface::algebraicVarTags, Interface::asl, Interface::interfaceId, Interface::outputLevel, Dakota::strends(), and Interface::user_auto_id().

Member Function Documentation

get_interface()

std::shared_ptr< Interface > get_interface ( ProblemDescDB &  problem_db, ParallelLibrary &  parallel_lib  )

static

retrieve an existing Interface, if it exists, or instantiate a new one

Returns

pointer to existing or newly created Interface

References Interface::interfaceCache.

Referenced by NestedModel::NestedModel().

interface_cache()

std::list< std::shared_ptr< Interface > > & interface_cache ( ProblemDescDB &  problem_db )

static

return the interface cache for the study

Parameters

problem_db

Returns

interface cache

References Interface::interfaceCache.

eval_tag_prefix()

void eval_tag_prefix	(	const String &	eval_id_str,
		bool	append_iface_id = true
	)

set the evaluation tag prefix (does not recurse)

default implementation just sets the list of eval ID tags; derived classes containing additional models or interfaces should override (currently no use cases)

References Interface::appendIfaceId, and Interface::evalTagPrefix.

response_mapping()

void response_mapping ( const Response &  algebraic_response, const Response &  core_response, Response &  total_response  )

protected

combine the response from algebraic_mappings() with the response from derived_map() to create the total response

This function will get invoked even when only algebraic mappings are active (no core mappings from derived_map), since the AMPL algebraic_response may be ordered differently from the total_response. In this case, the core_response object is unused.

References Dakota::abort_handler(), Response::active_set_derivative_vector(), Response::active_set_request_vector(), Interface::algebraicACVIds, Interface::algebraicFnIndices, Interface::coreMappings, Dakota::find_index(), Response::function_gradient(), Response::function_gradient_view(), Response::function_gradients(), Response::function_hessian(), Response::function_hessian_view(), Response::function_hessians(), Response::function_value(), Response::function_values(), Response::function_values_view(), Interface::outputLevel, Response::reset(), and Response::reset_inactive().

Referenced by ApplicationInterface::map(), ApproximationInterface::map(), ApplicationInterface::synchronize(), and ApplicationInterface::synchronize_nowait().

user_auto_id()

String user_auto_id ( )

staticprivate

return the next available interface ID for no-ID user methods

Rationale: The parser allows multiple user-specified interfaces with empty (unspecified) ID. However, only a single Interface with empty ID can be constructed (if it's the only one present, or the "last one parsed"). Therefore decided to prefer NO_ID over NO_ID_<num> for consistency with interface NO_ID convention. Additionally, NO_ID is preferred over NO_INTERFACE_ID (contrast with Iterator and Model) to preserve backward compatibility

Referenced by Interface::Interface().

no_spec_id()

String no_spec_id ( )

staticprivate

return the next available interface ID for on-the-fly methods

Rationale: For now NOSPEC_ID_ is chosen due to historical id="NO_SPECIFICATION" used for internally-constructed Iterators. Longer-term, consider auto-generating an ID that includes the context from which the method is constructed, e.g., the parent method or model's ID, together with its name.

References Interface::noSpecIdNum.

Member Data Documentation

rawResponseMap

IntResponseMap rawResponseMap

protected

Set of responses returned by either a blocking or nonblocking schedule.

The map is a full/partial set of completions which are identified through their evalIdCntr key. The raw set is postprocessed (i.e., finite diff grads merged) in Model::synchronize() where it becomes responseMap.

Referenced by ApplicationInterface::asynchronous_local_evaluations(), Interface::cache_unmatched_response(), Interface::cache_unmatched_responses(), ApplicationInterface::process_asynch_local(), ApplicationInterface::process_synch_local(), ApplicationInterface::receive_evaluation(), Interface::response_map(), ApplicationInterface::synchronize(), ApproximationInterface::synchronize(), ApplicationInterface::synchronize_nowait(), ApproximationInterface::synchronize_nowait(), ApplicationInterface::test_local_backfill(), and ApplicationInterface::test_receives_backfill().

---

The documentation for this class was generated from the following files:

• DakotaInterface.hpp
• DakotaInterface.cpp
